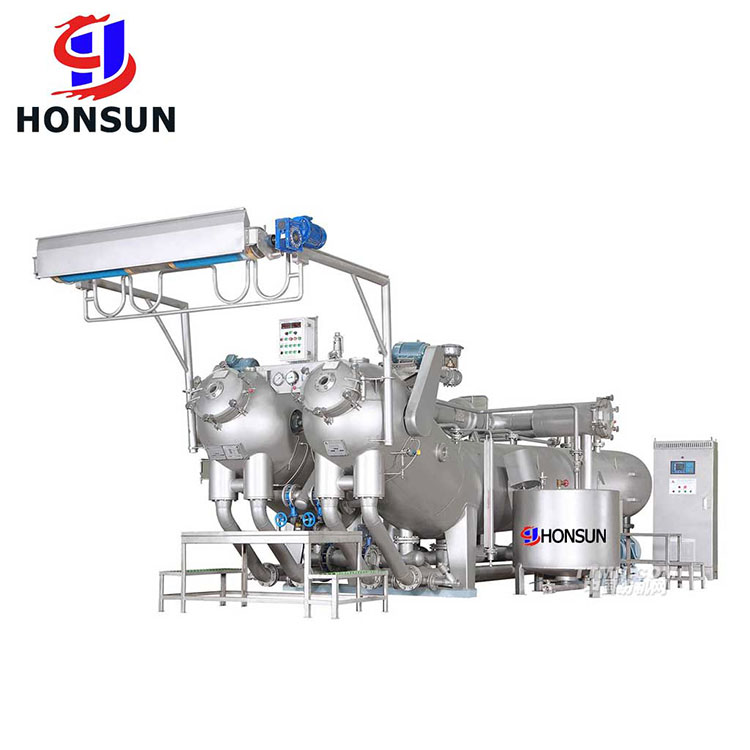

How does an overflow dyeing machine work?

Overflow dyeing machine is a dyeing equipment commonly used in the textile industry. Its working principle is mainly based on the combination of liquid flow and dyeing process.

1. Components of overflow dyeing machine

Overflow dyeing machine mainly consists of cloth feeding device, dyeing tank, overflow device, circulation system, heat exchanger and other parts.

(1) Cloth feeding device

Used to feed the fabric to be dyed into the dyeing tank.

(2) Dyeing tank

Used to hold the dye liquid and provide a dyeing environment for the fabric.

(3) Overflow device

By controlling the flow of liquid, the fabric maintains a uniform dyeing effect during the dyeing process.

(4) Circulation system

Used to circulate the dye liquid between the dyeing tank and the heat exchanger to make the temperature and concentration of the dye liquid evenly distributed.

(5) Heat exchanger

Used to heat or cool the dye liquid to meet different dyeing process requirements.

2. Working process of overflow dyeing machine

(1) First, the fabric to be dyed enters the dyeing tank through the cloth feeding device and comes into contact with the dye liquid to start dyeing.

(2) The dye liquid circulates between the dyeing tank and the heat exchanger through the circulation system, so that the temperature and concentration of the dye liquid are evenly distributed.

(3) The overflow device controls the flow of liquid to keep the fabric uniform during the dyeing process.

(4) During the dyeing process, the control device monitors the dyeing process and adjusts parameters such as the temperature and concentration of the dye liquid as needed to ensure the dyeing quality and efficiency.

(5) After dyeing is completed, the fabric is taken out of the dyeing tank through the cloth discharge device, completing the entire dyeing process.

The overflow dyeing machine mainly achieves efficient and high-quality dyeing effects through its unique structure and principle. In real life, we need to make corresponding adjustments and controls according to the specific fiber material, dye type and dyeing process requirements to obtain better dyeing effects.
