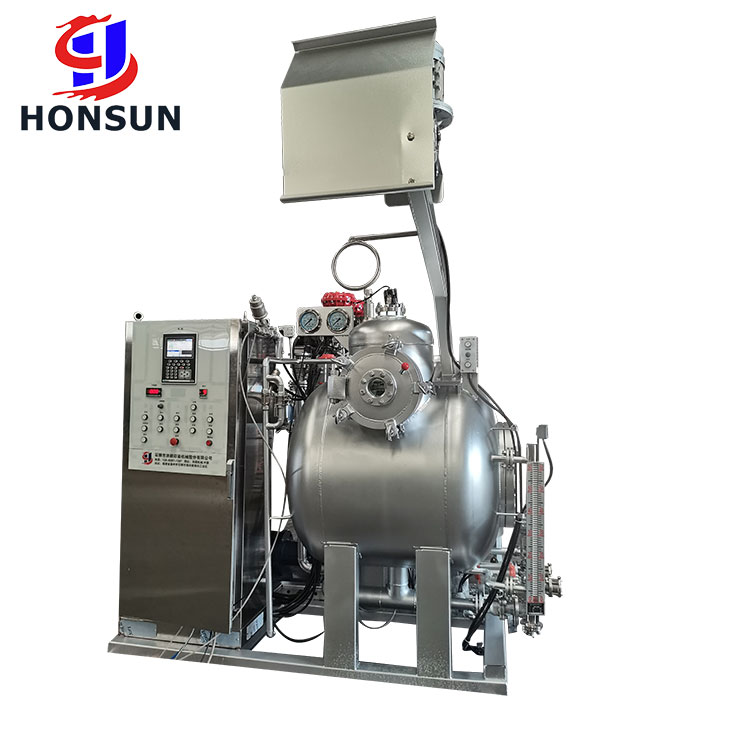

Soft Flow Dyeing Machine

Experience the difference with the Hongshun Soft flow dyeing machine, a high-quality apparatus designed to ensure gentle handling of fabrics while delivering vibrant and even dye application. This machine's innovative soft flow technology minimizes fabric stress, preserving the integrity and feel of the material. With the Hongshun Soft flow dyeing machine, your business gains a reliable ally in maintaining top tier dyeing standards

Send Inquiry

Product Description

Enhance your dyeing operations with the Hongshun Soft flow dyeing machine, crafted to provide gentle yet thorough dye application. Its advanced soft flow technology reduces strain on fabrics, safeguarding their texture and quality. Incorporating the Hongshun Soft flow dyeing machine into your workflow equips your enterprise with a dependable tool for upholding superior dyeing practices and achieving outstanding results.

Our team excels in professional installation, ensuring your soft flow dyeing machine is set up correctly and ready for immediate use. From site preparation to final testing, our experts handle every aspect of the installation process, guaranteeing that your China soft flow dyeing machine performs optimally from day one, providing durable soft flow dyeing machines.

Parameter (Specification)

Capacity	customized
Liquid ratio	1:4-6
Working speed	380m/min
Operating temperature	140℃
Working pressure	0.38MPa
Heating rate	20℃ -100℃, average 5℃/min, 100℃ -130℃, average 2.5℃/min
Heating rate	(under saturated steam pressure of 0.7Mpa)
Cooling rate	130℃ -100℃, average 3℃/min, 100℃ -85℃, average 2℃/min
Cooling rate	(under cooling water pressure 0.3MPa)

Feature And Application

The overflow dyeing machine is designed for efficient and gentle processing of fabrics. It ensures even coloration with minimal fabric stress, using advanced digital controls for precise cycle management. The machine's compact design and easy-access maintenance points simplify cleaning and servicing. Integrated safety features, such as automatic shut-off when the door opens, protect operators. Its water-efficient system reduces waste and lowers operational costs, making it a reliable and sustainable choice for textile production.

Specification

Model	Capacity	Chambers	Tubes	Liquor	Dimensions Unit（mm）
HSHT-O	KG	QTY	QTY	Ratio	L	W	H
O-250	250-300	1	1	1:4-6	3330	5300	3500
O-500	500-600	1	2	1:4-6	4580	5500	3500
O-750	750-900	1	3	1:4-6	5830	5800	3500
O-1000	1000-1200	1	4	1:4-6	7100	6200	3500
