Expertly crafting quality dyeing machines for a decade, we lead with smart, energy-efficient tech, ensuring top-tier performance. Our high temperature and high pressure cone dyeing machine, a textile sector favorite, boasts a distinct conical build and rapid rotation for swift, deep dye penetration, promising uniform results.

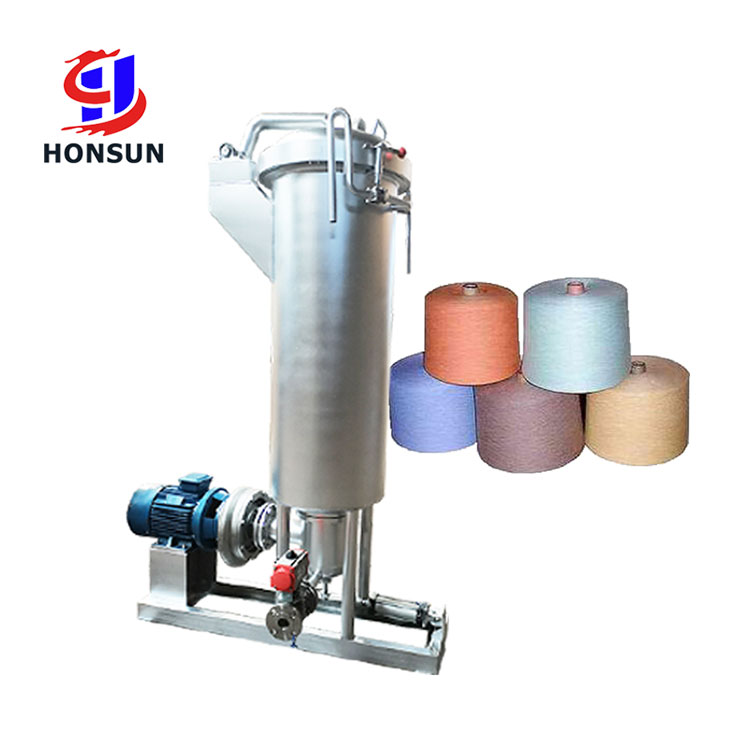

The high temperature and high pressure cone dyeing machine is made of high-quality stainless steel, with excellent corrosion resistance and durability, suitable for high-intensity industrial dyeing operations. The equipment uses high temperature and high pressure conditions to accelerate the penetration of dye molecules to achieve uniform and deep fiber dyeing effects.
As a dyeing machine manufacturer with 10 years of experience, we are committed to providing customers with the most advanced dyeing solutions to help you stand out from the competition. In the field of dyeing machines, we are always at the forefront of technology. Our advanced dyeing machines incorporate the latest technologies and design concepts, such as intelligent control systems, energy-saving technologies, etc., which greatly improve the performance and efficiency of the equipment..
High temperature and high pressure cone dyeing machine, with its unique design and excellent dyeing performance, occupies an important position in the textile industry. This dyeing machine adopts a conical structure, with high-speed rotation and high-pressure injection technology, which can make the dye penetrate into the fabric fiber in a short time, achieving uniform and deep dyeing effect.
The yarn dyeing machine is in a closed high pressure container, using high temperature (about 135°C) and high pressure (about 0.4Mpa) to make the dye quickly dissolve and penetrate into synthetic fibers such as polyester and nylon, even the most compact fiber structure can obtain good dyeing effect. In addition, the high temperature and high pressure cone dyeing machine also has a rapid cooling system, which can effectively shorten the dyeing cycle and improve production efficiency.
Capacity: |
Customized |
Cylinder inner diameter: |
Customized |
Design pressure: |
0.44MPa |
Design temperature: |
140℃ |
Heating rate: |
20℃~130℃for about 30 minutes (saturated vapor pressure is 0.7MPa) |
Cooling rate: |
130℃~80℃for about 20 minutes (cooling water pressure is 0.3MPa) |
Liquid ratio: |
1:4-8 |
Yarn dyeing machines, in sealed high-pressure vessels, utilize high temperatures (~135°C) and pressures (~0.4Mpa) to rapidly dye synthetics like polyester and nylon, even dense fibers. Enhanced with quick cooling, dyeing cycles are shortened, boosting efficiency.
Model |
Capacity |
Core |
Layer |
Cone |
HSHT-AT |
KG |
QTY |
QTY |
QTY |
AT-20 |
5 |
1 |
3-6 |
3-6 |
AT-40 |
20 |
3 |
4-7 |
12-21 |
AT-45 |
30 |
3 |
7-10 |
31-30 |
AT-55 |
50 |
6 |
7-10 |
42-60 |
AT-65 |
80 |
8 |
7-10 |
56-80 |
AT-75 |
100 |
12 |
7-10 |
84-120 |
AT-80 |
140 |
14 |
7-10 |
98-140 |
AT-90 |
180 |
19 |
7-10 |
133-190 |
AT-105 |
250 |
24 |
7-10 |
168-240 |
AT-120 |
300 |
36 |
7-10 |
252-360 |
AT-150 |
540 |
54 |
7-10 |
378-540 |
AT-190 |
1000 |
90 |
9-12 |
810-1080 |
High temperature and high pressure environment promotes dye penetration and color retention.
Circulation pump and mixed flow design ensure uniform dyeing and high efficiency and energy saving.
