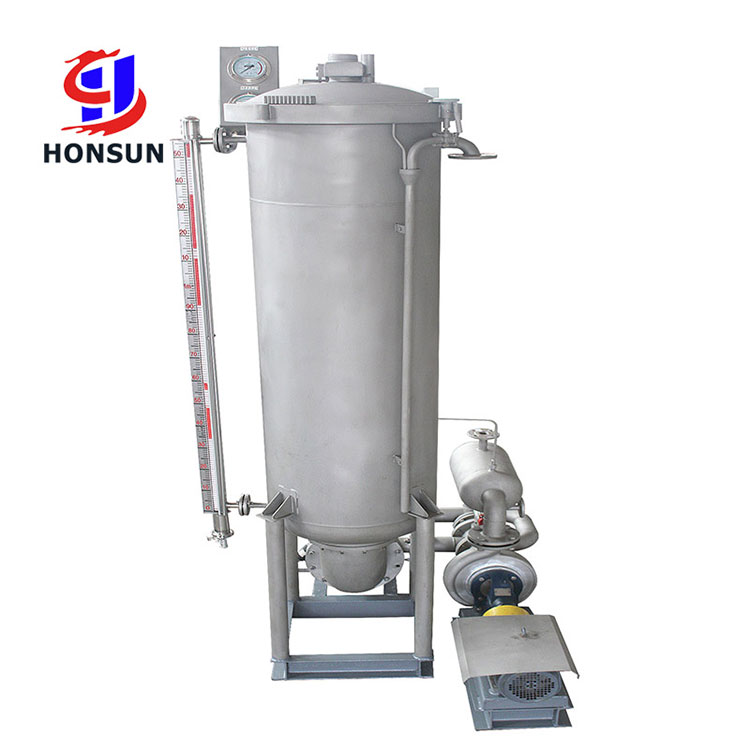

High Temperature and High Pressure Fiber Dyeing Machine

Our 10-year proven classic dyeing machine series, blending tradition with tech, is lauded for reliability. User-friendly, low-maintenance, they suit diverse dyeing needs, ideal for businesses of all sizes. The high temperature and high pressure fiber dyeing machine, tailored for synthetics like polyester, nylon, excels at up to 138°C, tackling high crystallinity and dense structures.

Send Inquiry

Product Description

The high temperature and high pressure fiber dyeing machine is specially designed for fine fibers, using a precisely controlled high temperature and high pressure environment to ensure uniform dyeing and lasting color. Made of high-quality stainless steel, it is suitable for large-scale industrial production. Its advanced technology makes the fiber dyeing process more environmentally friendly, reducing water and energy consumption, in line with the green production trend.

Our classic dyeing machine series, after 10 years of market testing, has won wide acclaim from customers for its stable and reliable performance. These dyeing machines combine traditional craftsmanship with modern technology. They are not only easy to operate and have low maintenance costs, but also can adapt to various dyeing needs. Whether you are a small business or a large factory, our classic dyeing machines are an ideal choice.

Our high temperature and high pressure fiber dyeing machine is an advanced dyeing machine designed specifically for synthetic fibers such as polyester, nylon, etc. Its core feature is the ability to dye at high temperatures, with an operating temperature of up to 138°C, to overcome the dyeing difficulties caused by the high crystallinity and compact structure of synthetic fibers.

This high temperature and high pressure fiber dyeing machine adopts a closed dyeing system with high-pressure steam or hot water circulation to ensure that the dye can be fully dissolved and diffused inside the fiber to achieve a uniform and deep dyeing effect. Our yarn dyeing machine is also equipped with a sophisticated temperature and pressure control system that can accurately control various parameters in the dyeing process to ensure the stability of the dyeing quality.

Parameter (Specification)

Capacity	Customized
Cylinder inner diameter	Customized
Design pressure	0.44MPa
Design temperature	140℃
Heating rate	20℃～130℃for about 30 minutes
Heating rate	(saturated vapor pressure is 0.7MPa)
Cooling rate	130℃～80℃for about 20 minutes
Cooling rate	(cooling water pressure is 0.3MPa)
Liquid ratio	1:4-8

Feature And Application

Featuring a sealed system with high-pressure steam/hot water for thorough fiber dye diffusion, ensuring uniform, deep coloration. Coupled with precise temperature/pressure control, dye quality consistency is guaranteed. Quality dyeing machines at competitive prices.

Specification

Model	Capacity	Main pump
HSHT-AT	KG	KW
AT-20	5	2.2
AT-40	20	4
AT-45	30	7.5
AT-55	50	11
AT-65	80	11
AT-75	100	11
AT-80	140	15
AT-90	180	15
AT-105	250	18.5
AT-120	300	37
AT-150	540	55
AT-190	1000	90
