Hongshun, a fabric dyeing machine manufacturer, offers High Temperature and High Pressure Fabric Dyeing Machine Long Tube that excel in efficiency and dye optimization. Our machines, celebrated by global clients, are crucial in textile finishing for versatile fabric washing and dyeing. With adjustable nozzles, they skillfully process knits and wovens, addressing varied material needs. Innovations include specialized designs: an upward knitted fabrics dyeing machine and a downward woven fabric dyeing machine, ensuring precise dye application for each fabric type.

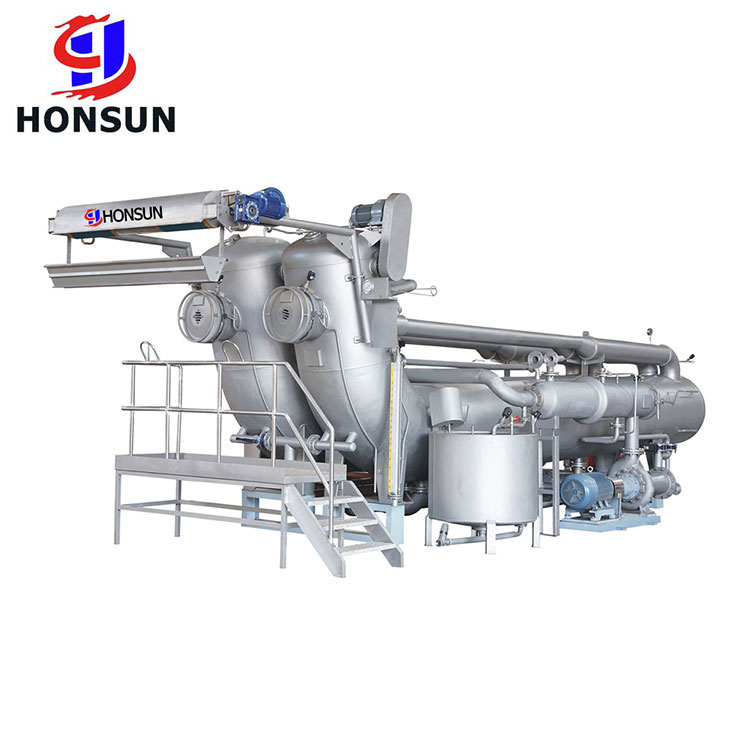

High temperature and high pressure fabric dyeing machine long tube adopts long cylinder design. The double design of injection and overflow can speed up the operation of the machine. The large flow of dye liquid can reduce the damage of fabrics and ensure the efficiency of fabric dyeing process. Its unique sealing system ensures the stability of temperature and pressure during dyeing, thus ensuring dyeing uniformity and color saturation. It is suitable for cotton, linen, synthetic fiber and other fabrics.
Hongshun are a professional fabric dyeing machine manufacturer. The fabric Dyeing Machines, entrenched in the market for over a decade, have earned a distinguished reputation, garnering accolades from clients worldwide. The high-temperature, high-pressure dyeing machine epitomizes efficiency, with its ingenious design ensuring optimal utilization of every drop of dye, a testament to our unwavering commitment to innovation and performance.
This high-temperature fabric dyeing machine has become an indispensable tool in textile finishing plants for fabric washing and dyeing processes. Its distinctive adjustable nozzle design endows the machine with remarkable versatility, adeptly handling both knitted and woven fabrics, thereby comprehensively catering to the dyeing requirements of diverse materials.
Over time, High temperature and high pressure fabric dyeing machine long tube has evolved, spawning diversified structural designs to precisely meet the dyeing demands of various fabrics. For knitted fabrics, we've developed a specialized dyeing machine featuring an upward fabric travel path; whereas for woven fabrics, there's a dedicated machine with a downward fabric travel route, ensuring each type of fabric receives the most suitable dyeing treatment
Capacity : |
customized |
Liquid ratio: |
1:6-10 |
Working speed: |
380m/min |
Operating temperature: |
140℃ |
Working pressure: |
0.38MPa |
Heating rate: |
20℃ -100℃, average 5℃/min, 100℃ -130℃, average 2.5℃/min (under saturated steam pressure of 0.7Mpa) |
Cooling rate: |
130℃ -100℃, average 3℃/min, |
The high temperature and high pressure fabric dyeing machine long tube is a versatile tool in textile processing, notable for its adjustable nozzle design which effectively treats knitted and woven fabrics.
Model |
Capacity |
Chambers |
Tubes |
Liquor |
Dimensions Unit(mm) |
||
HSHT-DH |
KG |
QTY |
QTY |
Ratio |
L |
W |
H |
DH-50 |
20-50 |
1 |
1 |
1:6-10 |
5530 |
1200 |
2850 |
DH-150 |
100-150 |
1 |
1 |
1:6-10 |
8580 |
1300 |
2850 |
DH-250 |
200-300 |
1 |
2 |
1:6-10 |
8450 |
1670 |
3100 |
DH-500 |
400-600 |
2 |
4 |
1:6-10 |
8450 |
3000 |
3100 |
DH-1000 |
800-1200 |
4 |
8 |
1:6-10 |
8450 |
6260 |
3100 |
High-temperature and high-pressure dyeing machine with an upward fabric path for knitted materials,
High-temperature and high-pressure dyeing machine with a downward path for woven fabrics, ensuring optimal dye application for each fabric type.
