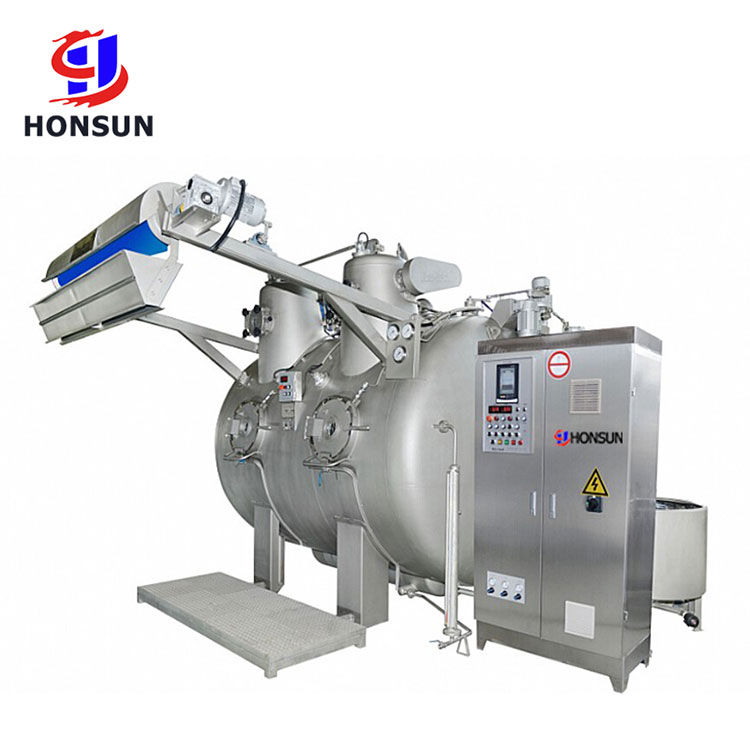

Our Chinese High Temperature and High Pressure Overflow Dyeing Machine O Type factory, favored in Southeast & Central Asia, offers competitive pricing and top-tier quality. Customizable high-temp models ensure uniform dyeing, with adjustable nozzles for precise dye solution distribution, suiting various fabrics from lightweight knits to heavy ribbed textures. Integrating auto & manual modes, the O-type dyeing machine features a color touchscreen for clear operation monitoring, and a PLC enables customizable dyeing programs, boosting productivity and personalization.
The high temperature and high pressure overflow dyeing machine O type cylinder design makes the dye and fabric fully contact through continuous overflow circulation to ensure the consistency of dyeing effect. This design reduces dye waste, improves dyeing efficiency, is suitable for mass production, and is favored by various textile manufacturers, especially those with strict requirements on environmental protection and cost control.
This is an overflow dyeing machine in China, which has been popular in the international market for more than ten years, especially in Southeast Asia and Central Asia, such as Vietnam, the Philippines, Bangladesh, Pakistan, Sri Lanka. As a direct manufacturer, we have a unique advantage in price competitiveness and quality control, ensuring that every customer can enjoy a cost-effective dyeing solution.
The customized high-temperature overflow dyeing machine leads the industry trend with its excellent dyeing uniformity. The carefully designed adjustable nozzle not only ensures the precise distribution of the dye solution, but also broadens its application range. Whether it is a light-weight knitted jersey fabric mesh fabric or a heavy ribbed fabric brush fabric, it can achieve ideal dyeing effects and meet diverse industrial needs.
Our High temperature and high pressure overflow dyeing machine O type seamlessly integrates automatic and manual modes, catering to diverse production settings with equal parts intelligence and practicality. Equipped with a vivid color touchscreen, it offers a clear view of operational statuses. Powered by a Programmable Logic Controller (PLC), dyeing programs and processes are fully customizable, enabling precise control for enhanced productivity and personalized dyeing requirements.
Capacity : |
customized |
Liquid ratio: |
1:6-10 |
Working speed: |
380m/min |
Operating temperature: |
140℃ |
Working pressure: |
0.38MPa |
Heating rate: |
20℃ -100℃, average 5℃/min, 100℃ -130℃, average 2.5℃/min (under saturated steam pressure of 0.7Mpa) |
Cooling rate: |
130℃ -100℃, average 3℃/min, |
Cylindrical structure and space saving:
O-type dyeing machines usually adopt a cylindrical design, which not only saves factory space, but also ensures uniform distribution of dyes and water, improving dyeing efficiency.
Ultra-low bath ratio:
O-type dyeing machines can achieve a lower bath ratio, such as 1:5, which means that less water is used to complete the dyeing process, which helps to save water resources and energy, reduce wastewater discharge, and meet environmental protection requirements.
Model |
Capacity |
Chambers |
Tubes |
Liquor |
Dimensions Unit(mm) |
||
HSHT-O |
KG |
QTY |
QTY |
Ratio |
L |
W |
H |
O-250 |
250-300 |
1 |
1 |
1:4-6 |
3330 |
5300 |
3500 |
O-500 |
500-600 |
1 |
2 |
1:4-6 |
4580 |
5500 |
3500 |
O-750 |
750-900 |
1 |
3 |
1:4-6 |
5830 |
5800 |
3500 |
O-1000 |
1000-1200 |
1 |
4 |
1:4-6 |
7100 |
6200 |
3500 |
1. Customizable Dyeing Excellence: With adjustable nozzles for precise dye solution distribution, it ensures uniform dyeing suitable for a wide range of fabric types, from lightweight knits to heavier brushed fabrics, meeting varied industrial dyeing needs.
2. Intelligent Operation & Control: Integrating automatic and manual modes, this machine features a user-friendly touchscreen for monitoring operations and a PLC for customizable dyeing programs, facilitating precise control and boosting productivity.
