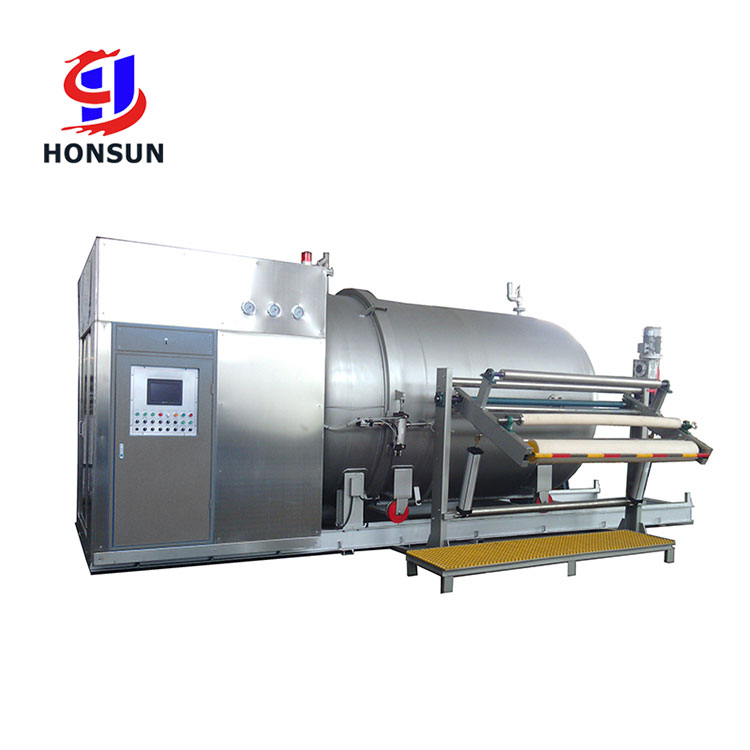

High Temperature and High Pressure Jigger Dyeing Machine
  • High Temperature and High Pressure Jigger Dyeing MachineHigh Temperature and High Pressure Jigger Dyeing Machine

High Temperature and High Pressure Jigger Dyeing Machine

Our 10-year-experienced factory specializes in custom dyeing machines, combining advanced tech for optimal performance. We offer holistic solutions beyond equipment, streamlining production and enhancing quality. The high temperature and high pressure jigger dyeing machine is perfect for open-width fabrics, ensuring uniform dyeing.

Send Inquiry

Product Description

The high temperature and high pressure jigger dyeing machine can accurately control the temperature and pressure, manage the fabric tension, ensure the deep dyeing and color fastness of open-width fabrics such as cotton and silk, meet the high-quality and high-quantity needs of large-scale production, and is the preferred solution for industrial-grade dyeing, improving production efficiency and product competitiveness.



Our dyeing machine factory focuses on the development and production of customized dyeing machines with 10 years of professional experience. We have a deep understanding of the specific needs of customers and use advanced design software and manufacturing technology to ensure that each customized high temperature and high pressure jigger dyeing machine can achieve optimal performance. We provide not only equipment, but also a one-stop solution to help customers optimize production processes and improve product quality.


The continuous cycle-based dyeing process of the High temperature and high pressure jigger dyeing machine is particularly suitable for uniform dyeing of open-width fabrics. At the beginning of the operation of our jigger, the dye liquor containing dyes and auxiliaries can be accurately configured in the dye tank, and the temperature and pH value can be more accurately controlled according to the type of dye used. Our design allows the fabric to fully contact with the dye liquor in the dye tank. Through immersion and squeezing, the dye molecules penetrate into the fabric fibers under the action of appropriate temperature and auxiliaries, achieving better dyeing effects.


After the dyeing process of the jigger dyeing machine is completed, the fabric is collected by a passive reel to complete a dyeing cycle. During the whole process, the dye liquor circulates continuously in the dye tank to maintain stable dyeing conditions. In addition, our jigger is also equipped with a temperature control system and a dye liquor replenishment system to ensure the efficiency and consistency of the dyeing process, and finally produce dyed fabrics with uniform color and high color fastness.


Parameter (Specification)



Diameter of main roller

Φ245-325mm

Max.Diameter of fabric roll

Φ1000/Φ1000/Φ1200

Mechanical width

1600-3800mm

Max.Working fabric width

1400-3600mm

Adjustable fabric rate

0-130m/min

Tension of fabric

0-60kg

Max.Working temperature

135℃

Overall dimension
L*W*H

Roll diameter800

(Width*2+3400)*2100*2200

Roll diameter1000

(Width*2+3450)*2400*2500

Roll diameter1200

(Width*2+3500)*2700*2800



Feature And Application



Post-dyeing, a passive reel collects fabric, completing cycles. Continuous dye liquor circulation maintains stable conditions. With integrated temperature control and replenishment, our jiggers ensure efficient, consistent dyeing for uniformly colored, high-fastness fabrics.




Details



Precise dye liquor formulation and adjustable temperature/pH cater to dye types. Immersion and squeezing facilitate dye molecule penetration, improving results.

high-temp and high-pressure jiggers, operating above 130°C, are engineered for synthetics—polyester, nylon—with disperse dyes.
