Leading Chinese dyeing machine makers, we offer cost-effective, high-quality jigger dyeing machine. normal temperature and pressure jigger dyeing machine suit naturals, gentle on fabrics, saving energy. normal temperature and pressure jigger dyeing machine types excel with synthetics, delivering quick, uniform, dark dyes, yet costlier. Choice hinges on fabric, dye needs, budget.

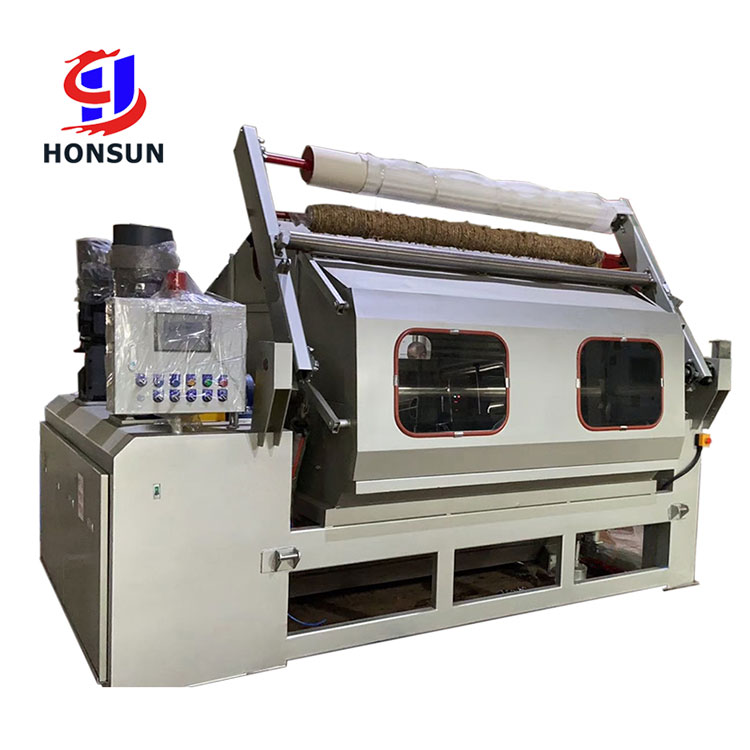

The normal temperature and pressure jigger dyeing machine is a dyeing machine for open-width woven fabrics. With its mild dyeing conditions, it is suitable for temperature-sensitive synthetic fibers and blended materials, such as polyester and nylon, and demonstrates its unique advantages in the field of functional fabric dyeing. At the same time, its simple operation process and stable dyeing effect provide efficient and economical dyeing solutions for small and medium-sized textile enterprises, helping to improve their market competitiveness.
As a well-known normal temperature and pressure jigger dyeing machine manufacturer in China, we are well aware of the importance of cost control. Therefore, we have specially launched a series of economical dyeing machines to provide customers with a very cost-effective choice. Despite the affordable price, our dyeing machines still maintain high standards of quality and performance to ensure that customers get the maximum return on their investment.
There are significant differences in working conditions, applicable scope and dyeing characteristics between normal temperature and normal pressure jigger dyeing machines and high temperature and high pressure jigger dyeing machines. The room jigger dyeing machine operates at a temperature and pressure close to the natural environment. It is especially suitable for processing temperature-sensitive natural fibers, such as cotton, linen and silk. It uses reactive or acid dyes. The dyeing process is gentle and can effectively protect the original fabric. Unparalleled softness and texture while having lower energy consumption and cost.
In contrast, the pressure jigger dyeing machines operate at pressures significantly higher than normal temperatures and temperatures as high as 130°C or more. They are specially designed for synthetic fibers such as polyester and nylon. They use disperse dyes to accelerate dyeing in high-temperature and high-pressure environments. Dissolution and penetration achieve fast, uniform and highly fixed color effects, which are suitable for dark colors and high color fastness requirements. However, the operating conditions require higher requirements, and energy consumption and equipment maintenance costs also increase accordingly. Therefore, choosing a suitable jig dyeing machine requires comprehensive consideration of fabric material, dyeing requirements and economic feasibility.
Diameter of main roller |
Φ245-400mm |
|
Max.Diameter of fabric roll |
Φ1000/Φ1200/Φ1400/Φ1500mm |
|
Mechanical width |
1600-3800mm |
|
Max.Working fabric width |
1400-3600mm |
|
Adjustable fabric rate |
0-130m/min |
|
Tension of fabric |
0-60kg |
|
Max.Working temperature |
100℃ |
|
Overall dimension |
Roll diameter1000 |
(Width+1650)*1900*2100 |
Roll diameter1200 |
(Width+1650)*2100*2200 |
|
Roll diameter1400 |
(Width+1850)*2800*2300 |
|
Roll diameter1500 |
(Width+1850)*2900*2350 |
Normal temperature and pressure jigger dyeing machine, akin to ambient conditions, excel with temperature-sensitive naturals like cotton, linen, silk. Using reactive or acid dyes, they gently preserve fabric softness and texture, boasting lower energy use and costs.
The inclined top self-closing door frame improves operating safety.
Pneumatically controlled opening and closing, the top cover is evenly heated.
