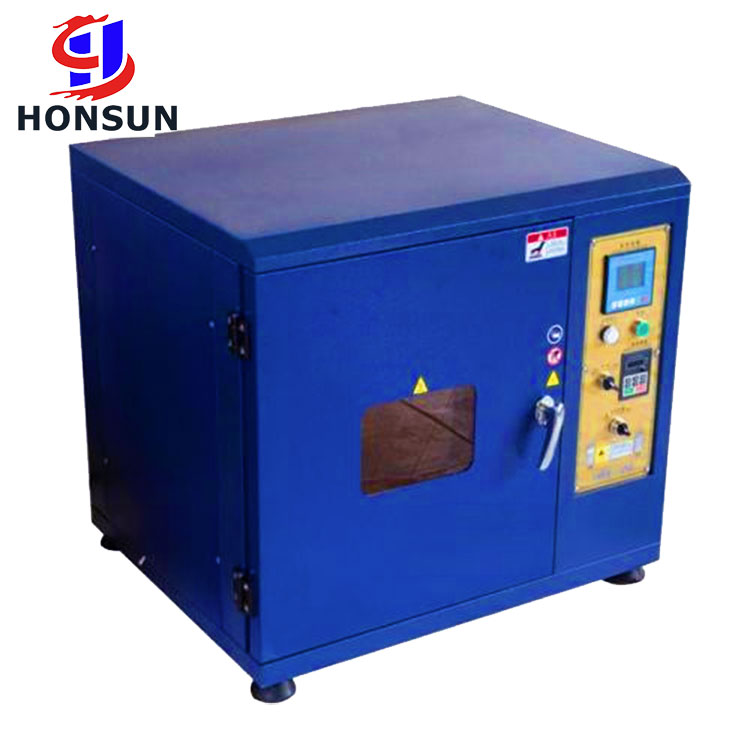

Infrared Sample Dyeing Machine

The Infrared sample dyeing machine from Hongshun is a high-quality solution designed for laboratories and small-scale dyeing operations. This machine utilizes infrared technology to achieve rapid and even dyeing, ensuring vibrant colors and consistent results. When you buy the Infrared sample dyeing machine, you get more than just a piece of equipment; you gain access to Hongshun's years of experience and expertise. As one of the leading Infrared sample dyeing machine manufacturers in China, Hongshun offers a robust machine that is both efficient and easy to maintain, making it a preferred choice for labs around the world.

Send Inquiry

Product Description

Wholesale Infrared sample dyeing machines from Hongshun, and enjoy bulk discounts that make it cost-effective to equip multiple facilities or expand your dyeing capacity. These lab equipment are made in China and come with a1-year warranty, providing peace of mind and long-term value. Hongshun's Infrared sample dyeing machine factory employs advanced manufacturing techniques to produce machines that are durable and reliable, ensuring your investment lasts.

The Infrared Sample Dyeing Machine leverages advanced infrared technology to provide rapid and efficient dyeing, making it ideal for labs and small-scale production. Founded over 10 years ago, our company has grown to become a leading Infrared Sample Dyeing Machine supplier, renowned for our commitment to innovation and quality. This machine exemplifies our dedication to providing cutting-edge solutions that enhance productivity and efficiency, ensuring that you achieve consistent and vibrant results with minimal effort.

Parameter (Specification)

Test cup material	316L stainless steel
Working temperature	20-140℃
Working temperature	The temperature rise and fall rate 0.1-9.9℃/min
Bath ratio	1:5-1:30
Number of test cups	12/24
Test cup capacity	150ml,300ml, 420ml, 500ml
Cooling method	air cooling
Drive motor	250W
Power supply voltage	AC380V, 50HZ

Feature And Application

Laboratory sample dyeing machine is suitable for various yarns, knitted fabrics, woven fabrics, microfibers and various types of different fibers.

Material: The body is made of SUS304 stainless steel, and the shell is sprayed.

Temperature sensor: with heating curve, the temperature detection accuracy can reach±0.1℃.

Specification

Electric heating power:

single-sided nano-coated infrared tube

The 12-cup4.8KW.

The 24-cup 5.4KW..

Weight:

The 12-cup:120KG;

The 24-cup::136KG

Dimensions

The 12-cup: 670*670*770mm

The 24-cup 860*680*780mm

Details

Working status: The main dyeing cup in the machine rolls and rotates 360 degrees, and the coloring speed is more uniform.

Heating method: infrared heating tube heating and heat transfer oil heating are carried out at the same time, avoiding the temperature difference between the cups
