Oscillating Sample Dyeing Machine
  • Oscillating Sample Dyeing MachineOscillating Sample Dyeing Machine

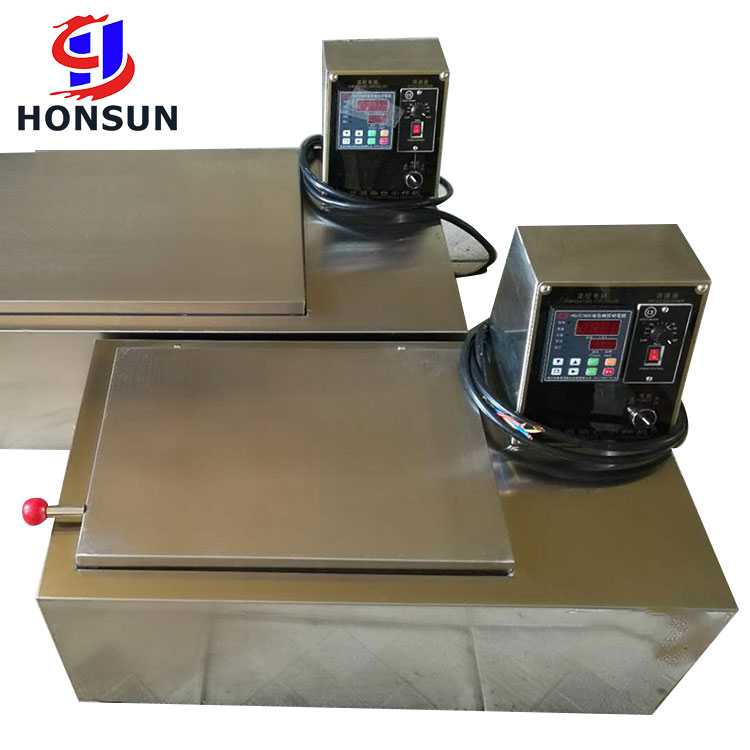

Oscillating Sample Dyeing Machine

The Hongshun Oscillating sample dyeing machine is a high-quality solution for laboratories and small-scale dyeing operations. This machine utilizes oscillation to achieve even dye distribution, ensuring vibrant colors and consistent results. When you buy the Oscillating sample dyeing machine, you get more than just a piece of equipment; you gain access to Hongshun's years of experience and expertise. As one of the leading Oscillating sample dyeing machine manufacturers in China, Hongshun offers a robust machine that is both efficient and easy to maintain, making it a preferred choice for labs around the world.

Wholesale Oscillating sample dyeing machines from Hongshun, and enjoy bulk discounts that make it cost-effective to equip multiple facilities or expand your dyeing capacity. These machines are made in China and come with a 1-year warranty, providing peace of mind and long-term value. Hongshun's Oscillating sample dyeing machine factory employs advanced manufacturing techniques to produce machines that are durable and reliable, ensuring your investment lasts.


Parameter (Specification)



Material

 SUS304 stainless steel plate

Working medium

 water

Bath ratio

1:5-1:20

Maximum temperature

 99℃

Temperature control accuracy

 0.1℃

Temperature control range

 20℃~99℃

Cup clamping device

 stainless steel spring and Cup claw structure

Test cup capacity

 glass triangle beaker 250ml/500ml

Oscillation speed

 50-200 reciprocating/min, oscillation distance 36mm

Power supply specification

 AC220V, 50Hz



Specification



Heating power


 12 cup, 3KW

24 cup, 6KW

Number of test cups



 12 cups, 250ml*12 or 500ml*6

24 cups, 250ml*24 or 500ml*15

Dimensions


 12 cups 880mm*420mm*330mm

24 cups of 1030mm*560mm*330nm

Machine weight


 12 cups, 30Kg

24 cups, 50kg



Feature And Application



The product boasts several advantages: constructed from durable, aesthetically pleasing SUS304 stainless steel, it features an advanced computer-controlled heating system with digital display and alarm functions. A high-quality speed-regulating motor and innovative crank mechanism ensure stable, low-noise operation. Additionally, a programmable computer allows for the storage of ten process curves, customizable in ten steps each, enabling precise control over heating rates and holding times, complemented by a T100 temperature sensor for accurate measurements.



Details



1. Material:

Made of durable SUS304 stainless steel, easy to install and operate.



2. Temperature:

Computer-controlled heating with digital display and alarms.



3. Transmission:

High-quality motor, precise, low-noise operation.



4. Programming:

10 programmable curves, adjustable heating rates, T100 sensor, automated control.

Send Inquiry

Product Description

Wholesale Oscillating sample dyeing machines from Hongshun, and enjoy bulk discounts that make it cost-effective to equip multiple facilities or expand your dyeing capacity. These machines are made in China and come with a 1-year warranty, providing peace of mind and long-term value. Hongshun's Oscillating sample dyeing machine factory employs advanced manufacturing techniques to produce machines that are durable and reliable, ensuring your investment lasts.


The Oscillating Sample Dyeing Machine distributes dye evenly across fabric samples through gentle oscillation, making it ideal for creating uniform color samples. Our company, a pioneer in lab machine Oscillating Sample Dyeing Machine technology, has been providing industry-leading solutions for over 10 years. This oscillating machine is crafted with precision to meet the exacting standards required in textile research and development, ensuring your samples are processed with the utmost care.


Parameter (Specification)



Material

 SUS304 stainless steel plate

Working medium

 water

Bath ratio

1:5-1:20

Maximum temperature

 99℃

Temperature control accuracy

 0.1℃

Temperature control range

 20℃~99℃

Cup clamping device

 stainless steel spring and Cup claw structure

Test cup capacity

 glass triangle beaker 250ml/500ml

Oscillation speed

 50-200 reciprocating/min, oscillation distance 36mm

Power supply specification

 AC220V, 50Hz



Feature And Application



The product boasts several advantages: constructed from durable, aesthetically pleasing SUS304 stainless steel, it features an advanced computer-controlled heating system with digital display and alarm functions. A high-quality speed-regulating motor and innovative crank mechanism ensure stable, low-noise operation. Additionally, a programmable computer allows for the storage of ten process curves, customizable in ten steps each, enabling precise control over heating rates and holding times, complemented by a T100 temperature sensor for accurate measurements.




Specification



Heating power


 12 cup, 3KW

24 cup, 6KW

Number of test cups



 12 cups, 250ml*12 or 500ml*6

24 cups, 250ml*24 or 500ml*15

Dimensions


 12 cups 880mm*420mm*330mm

24 cups of 1030mm*560mm*330nm

Machine weight


 12 cups, 30Kg

24 cups, 50kg



Details



1. Material:

Made of durable SUS304 stainless steel, easy to install and operate.



2. Temperature:

Computer-controlled heating with digital display and alarms.



3. Transmission:

High-quality motor, precise, low-noise operation.



4. Programming:

10 programmable curves, adjustable heating rates, T100 sensor, automated control.
